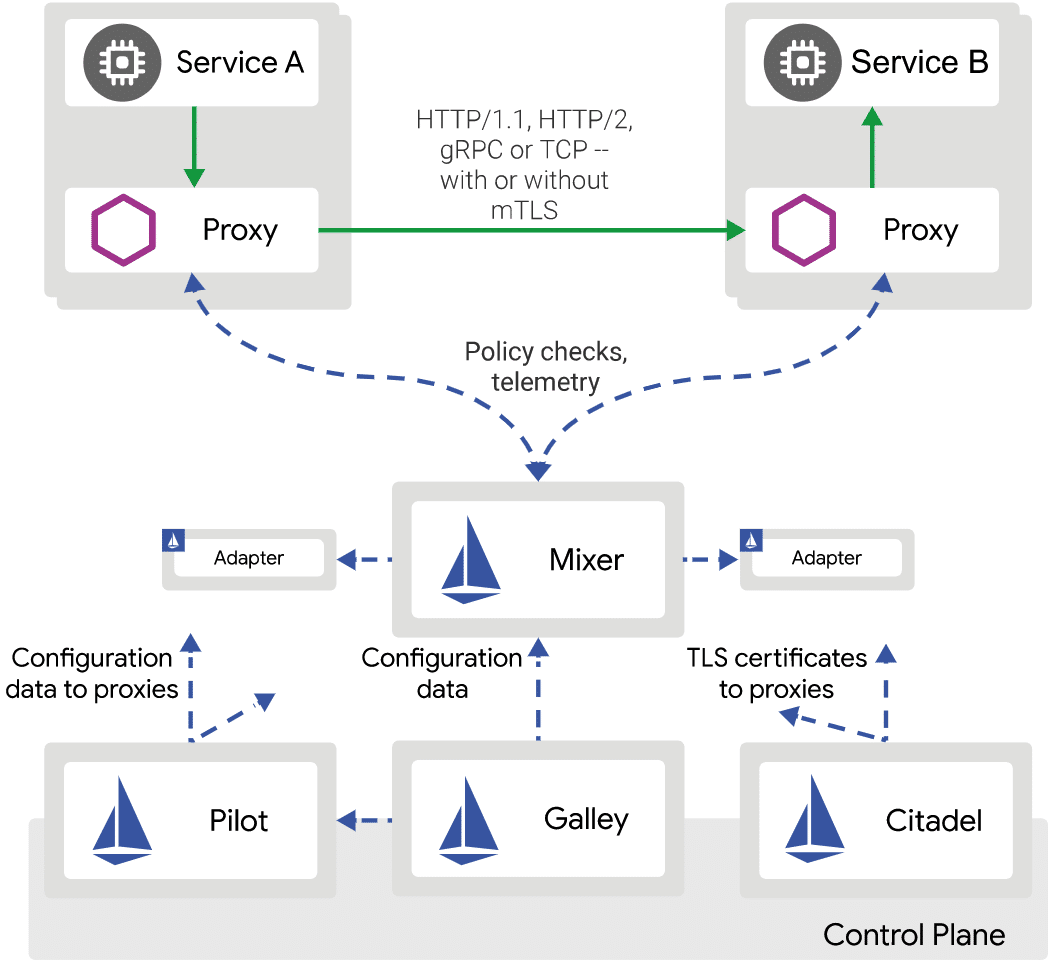

Istio makes it easy to create a network of deployed services with load balancing, service-to-service authentication, monitoring, and more. You add Istio support to services by deploying a special sidecar proxy throughout your environment that intercepts all network communication between microservices, then configure and manage Istio using its control plane functionality. Was developed on top of Kubernetes.
- How to easily setup Istio service mesh in AWS EKS
- Deploying an Istio Gateway with TLS in EKS using the AWS Load Balancer Controller
Service Mesh

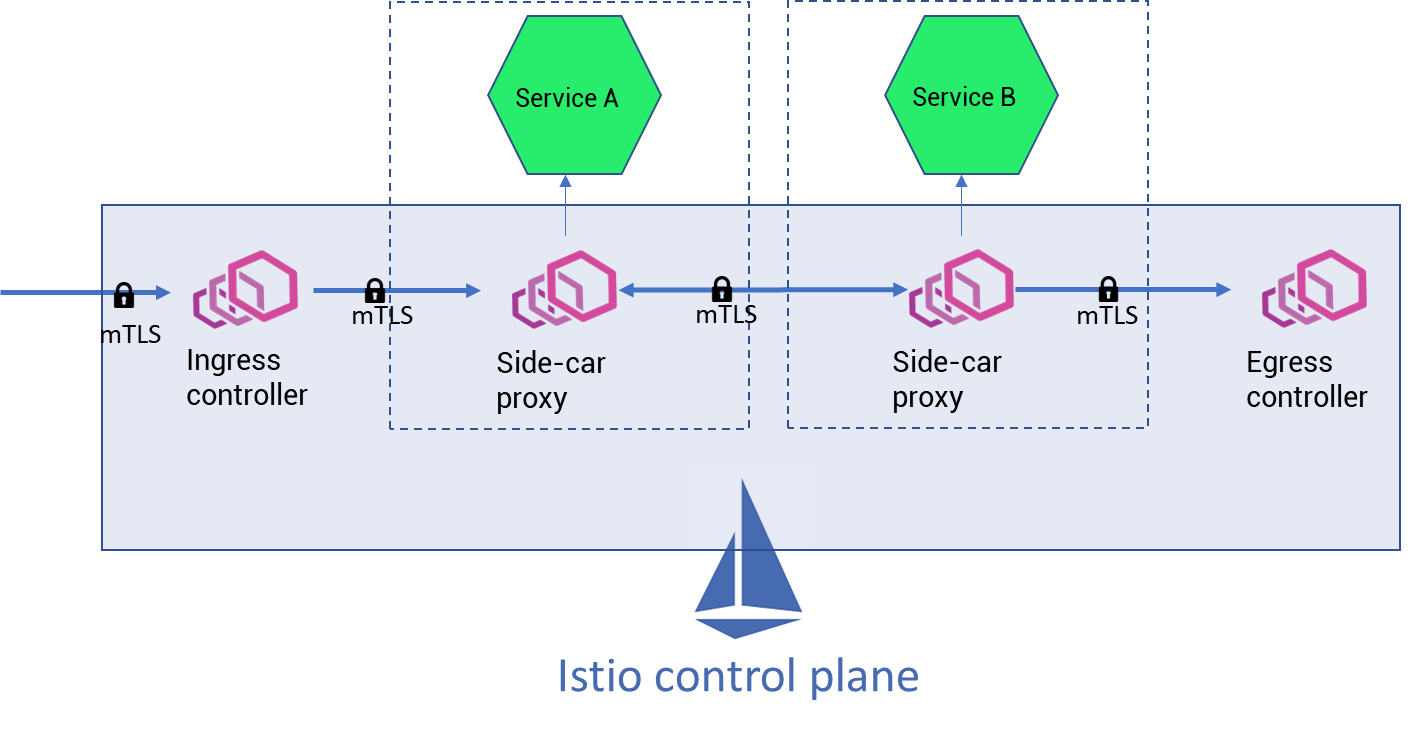

Istio service mesh is the powerful software to enable zero trust by enabling authentication, authorization, and audit using mTLS or just encryption of data-in-transit and identity controls. Platform teams, cloud architects of large organizations have implemented security using Istio. To implement security, Istio involves the following components- a certificate authority (CA) for key management, API to distribute Authn/Authz policies to proxies, Policy Enforcement Points (PEPs) implemented using sidecars (Envoy proxies), and extensions to manage telemetry.
- Secure overlay layer (also known as zero-trust tunnel or ztunnel)is a L4 processing layer designed to implement TCP routing and handle zero trust security for traffic such as mTLS, Authentication and Authorization policies.
- L7 processing layer (also known as waypoint proxy) is designed to handle complex traffic management functionalities such as HTTP routing, circuit breaking, chaos engineering, reties, timeouts, rate limiting, etc, and handle granular Authn/Authz policy implementation.
Ambient mesh
Istio ambient mesh is a sidecar-less implementation of Istio. It is comparatively faster, lightweight, and provides all the L4 and L7 functionality of Istio.
The connection between ztunnels happens over an HTTP tunnel, called HBONE (or HTTP-Based Overlay Network Environment), where the traffic is encrypted with mTLS. Waypoint proxy is basically Envoy which is deployed as a pod, not as a container. It is deployed per namespace or service account.

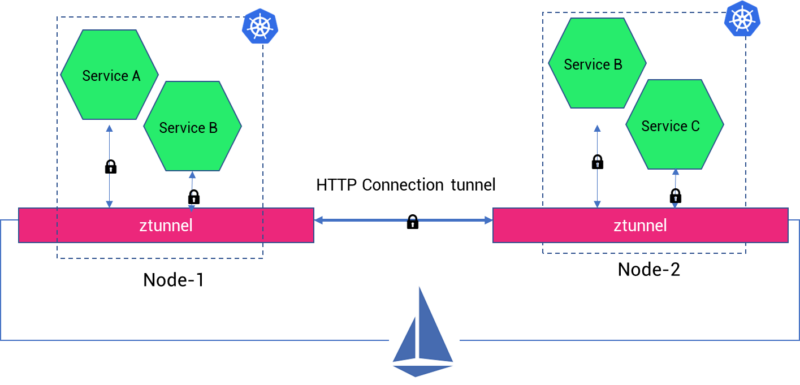

Ztunnel is an agent, primarily a rust-based proxy, whose responsibility is to securely connect and authenticate elements within the mesh. One can deploy ztunnel as a DaemonSet workload resource on a Kubernetes cluster. Ztunnel is a dedicated L4 technology and is deployed per node in a cluster. The idea is ztunnel will be shared among all the workloads in a node it is deployed to. The ztunnel leverages leverages Kubernetes CNI to establish connections between workloads, secure communication using mTLS, collect HTTP metrics, access logs, etc
Components
Service Entry
ServiceEntry enables adding additional entries into Istio’s internal service registry so that auto-discovered services in the mesh can access/route to these manually specified services. Istio ServiceEntry is the way to define an endpoint that doesn’t belong to the Istio Service Registry.
Virtual Service
Gateway
Sidecar Proxy
CLI
- Cheatsheet
- Display logs from proxy-config (kubeflow example)
istioctl pc log --level "rbac:debug" profiles-kfam-*.kubeflow
